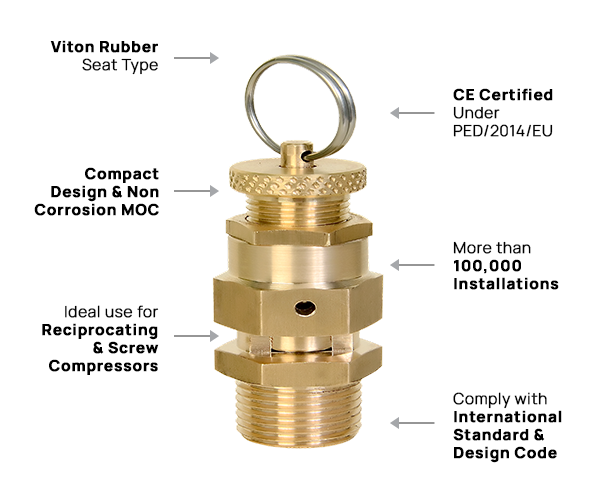

Design Features
-
Safety Valve Manufacture in Accordance with Requirement of ASME Pressure Vessel Code under Section VIII Division I & ISO 4126 Part 1.
-
Direct Spring Operated
-
Full Nozzle & Single Trim Design.
-
Full Brass Material Construction
-
Atmospheric Discharge Design.
-
Rubber Seat Design for Zero leakage.
-
Best Use in Air Compressors & Pressure Vessel.
-
Not Suitable for Oxygen, Liquid & Steam Service.
-
CE Certified under Category IV Module H (2014/68/EU).
Technical Detail
| SIZE | 1/4”, 3/8”, 1/2”, 3/4” |
| PRESSURE RANGE | 1BARG TO 18BARG |
| TEMP. RANGE | -20°C TO 200°C |
| END CONNECTION | THREAD END (BSP) |
| SEAT | RUBBER SEAT |
| APPLICATION | AIR OR NON FLAMABLE GAS |
| APPLICABLE CODE & STD |
ASME SEC.VIII DIV.1 PTC-25 API 520, ISO 4126 PART.1, API 527, ASME 16.34 |
Technical Detail

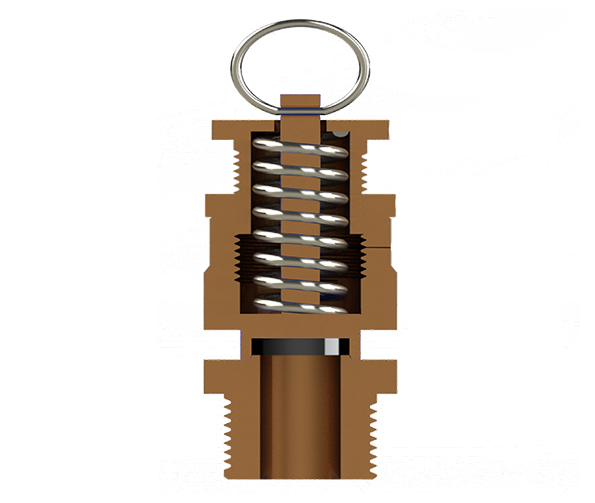

| PART LIST | MOC |
| BODY | BRASS |
| RUBBER SEAT | VITON, NITRILE, SILICON, EPDM |
| SPINDLE | BRASS |
| SPRING | SS302 |
| LOCK NUT | BRASS |
| SETTING SCREW | BRASS |
| RING | SS304 |
Technical Data
Size
1/4", 3/8", 1/2", 3/4"
End Connection
Thread End (BSP, BSPT, NPT)
Set Pressure Range
0.5Barg to 18Barg
Temperature Range
-20*C to 200*C
Application
Air or Non- Flammable, Toxic, Corrisive Gas
Applicable Std
API520, API527, EN ISO 4126 Part.1, ASME PTC-25, ASME 16.34
