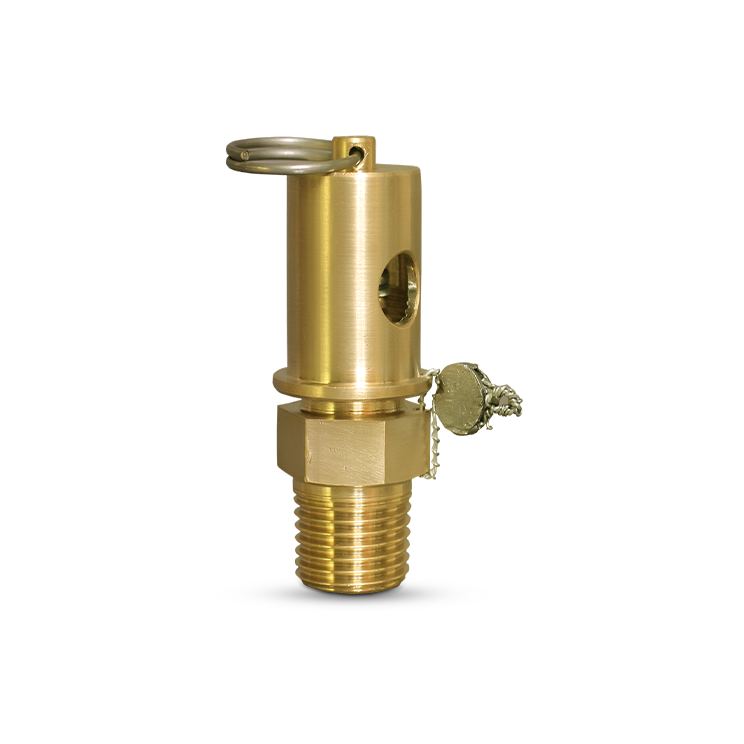

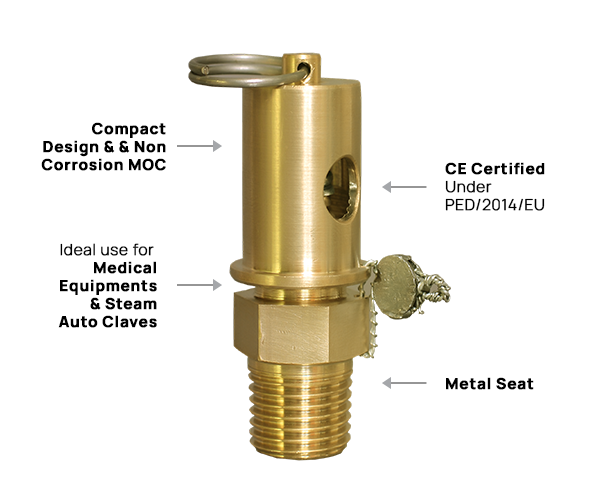

Design Features
-
Safety Valve Manufacture in Accordance with Requirement of ASME Pressure Vessel Code under Section VIII Division I & ISO 4126 Part 1.
-

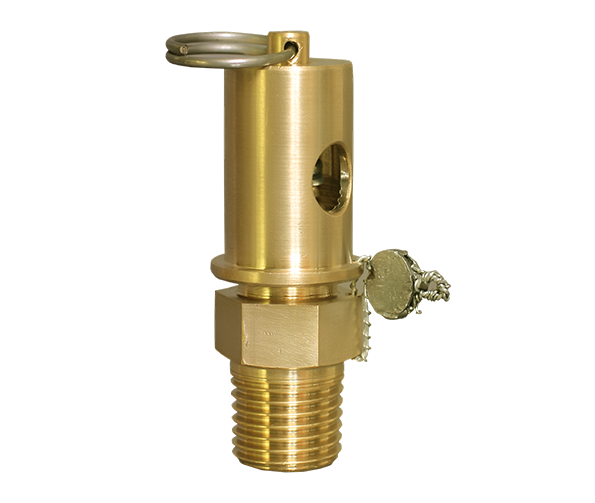

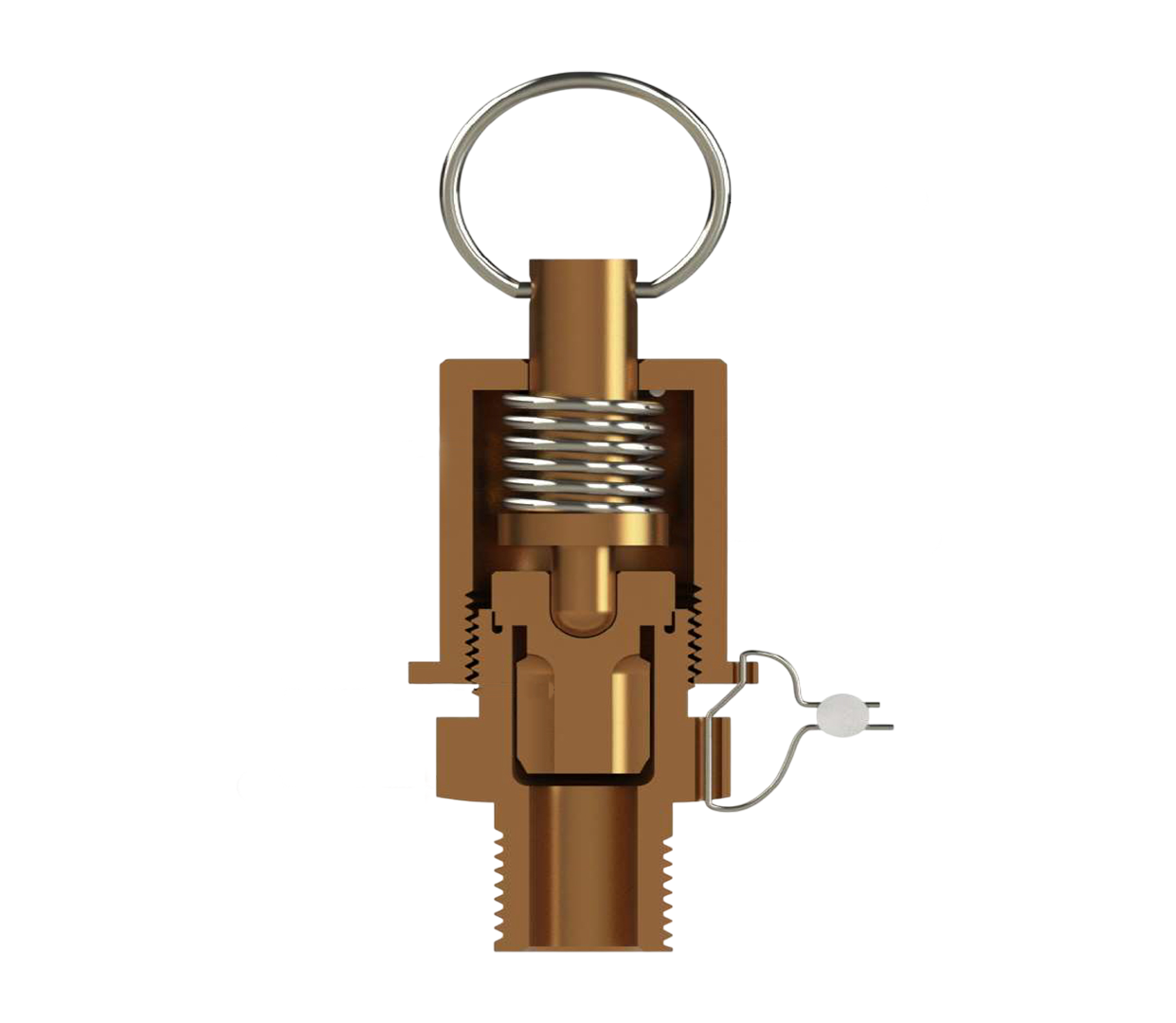

Direct Spring Operated
-
Full Nozzle & Single Trim Design.
-
Full Brass Material Construction .
-
Atmospheric Discharge Design.
-
Best Use in Steam Auto Claves, Low Flow Air Compressors & Pressure Vessel.
-
Not Suitable for Oxygen & Liquid Service.
-
CE Certified under Category IV Module H (2014/68/EU).
Technical Detail
| SIZE | 1/4”, 3/8”, 1/2” |
| PRESSURE RANGE | 1BARG TO 18BARG |
| TEMP. RANGE | -20°C TO 200°C |
| END CONNECTION | THREAD END (BSP & NPT) |
| SEAT | METAL SEAT |
| APPLICATION | AIR / NON FLAMABLE GAS / STEAM |
| APPLICABLE CODE & STD |
ASME SEC.VIII DIV.1 PTC-25 API 520, ISO 4126 PART.1, API 527, ASME 16.34 |
Technical Detail
| PART LIST | MOC |
| BODY | BRASS |
| NOZZLE | BRASS |
| DISC | BRASS |
| SPINDLE | BRASS |
| SPRING | SPRING STEEL |
| PULLING RING | SS304 |
| WIRE & SEAL | S.S.304 & LEAD |
Technical Data
Size
1/4", 3/8", 1/2"
End Connection
Thread End (BSP, BSPT, NPT)
Set Pressure Range
0.5Barg to 18Barg
Temperature Range
-20*C to 200*C
Application
Air or Steam
Applicable Std
API520, API527, EN ISO 4126 Part.1, ASME PTC-25, ASME 16.34
